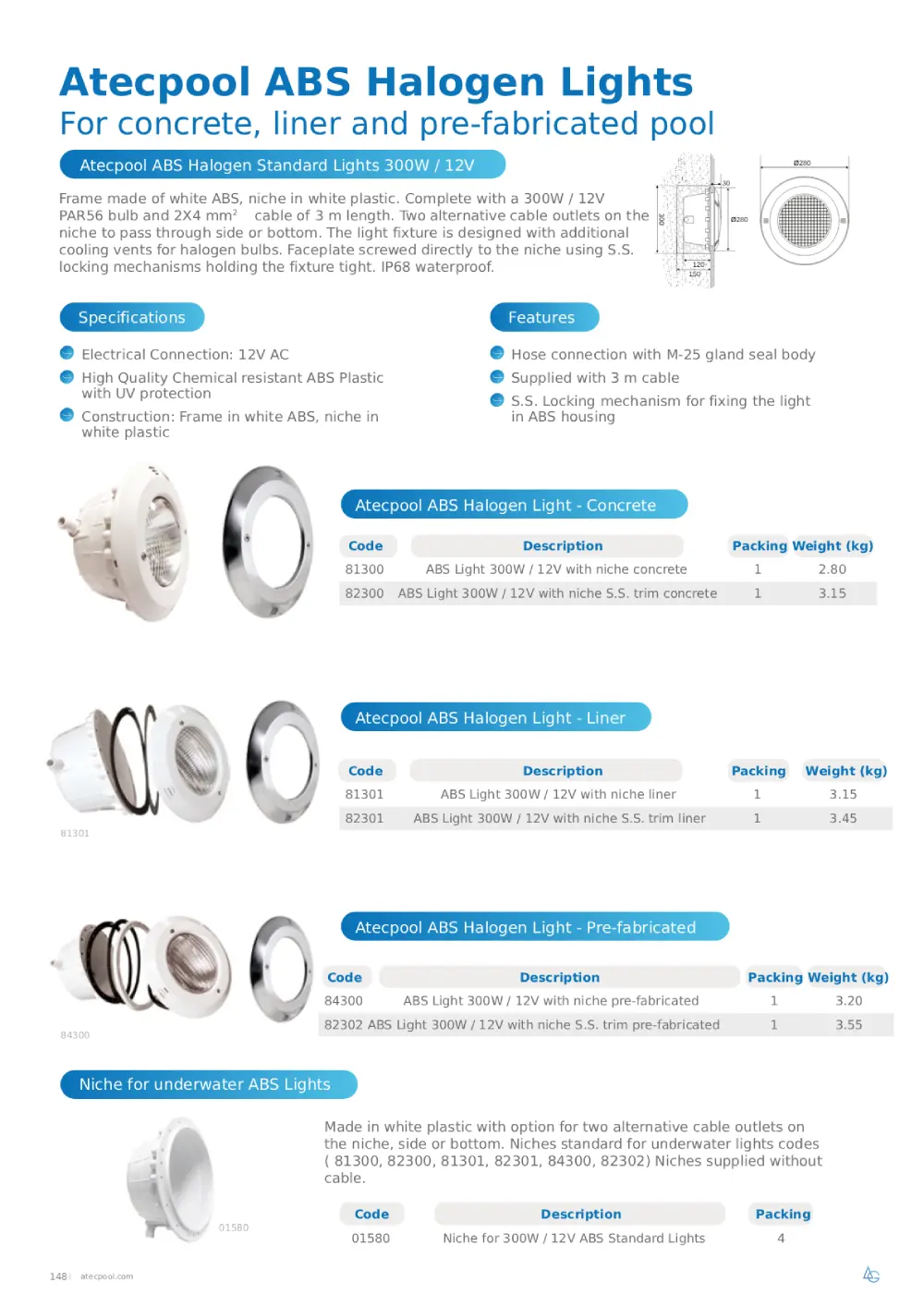

Atecpool ABS Halogen Lights

FOR CONCRETE, LINER AND PRE-FABRICATED POOL

Atecpool ABS Halogen Standard Lights 300W / 12V

Frame made of white ABS, niche in white plastic. Complete with a 300W / 12V PAR56 bulb and 2X4 mm2 cable of 3 m length. Two alternative cable outlets on the niche to pass through side or bottom. The light fixture is designed with additional cooling vents for halogen bulbs. Faceplate screwed directly to the niche using S.S. locking mechanisms holding the fixture tight. IP68 waterproof.

Category:
Brand:

Specifications

  • Electrical Connection: 12V AC
  • High-quality chemical-resistant ABS Plastic with UV protection
  • Construction: Frame in white ABS, niche in white plastic

Features

  • Hose connection with M-25 gland seal body
  • Supplied with 3 m cable
  • S.S. locking mechanism for fixing the light in the ABS housing

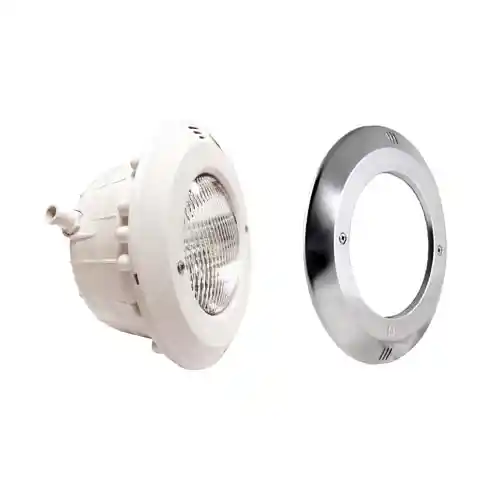

Atecpool ABS Halogen Light – Concrete

Code Description Packing Weight (kg)
81300 ABS Light 300W / 12V with niche concrete 1 2.8
82300 ABS Light 300W / 12V with niche S.S. trim concrete 1 3.15

Atecpool ABS Halogen Light – Liner

Code Description Packing Weight (kg)
81301 ABS Light 300W / 12V with niche liner 1 3.15
82301 ABS Light 300W / 12V with niche S.S. trim liner 1 3.45

Atecpool ABS Halogen Light – Pre-fabricated

Code Description Packing Weight (kg)
84300 ABS Light 300W / 12V with niche pre-fabricated 1 3.2
82302 ABS Light 300W / 12V with niche S.S. trim pre-fabricated 1 3.55

Niche for underwater ABS Lights

Made in white plastic with the option for two alternative cable outlets on the niche, side or bottom. Niches standard for underwater lights codes ( 81300, 82300, 81301, 82301, 84300, 82302). Niches supplied without cable.

Code Description Packing
01580 Niche for 300W / 12V ABS Standard Lights 4
