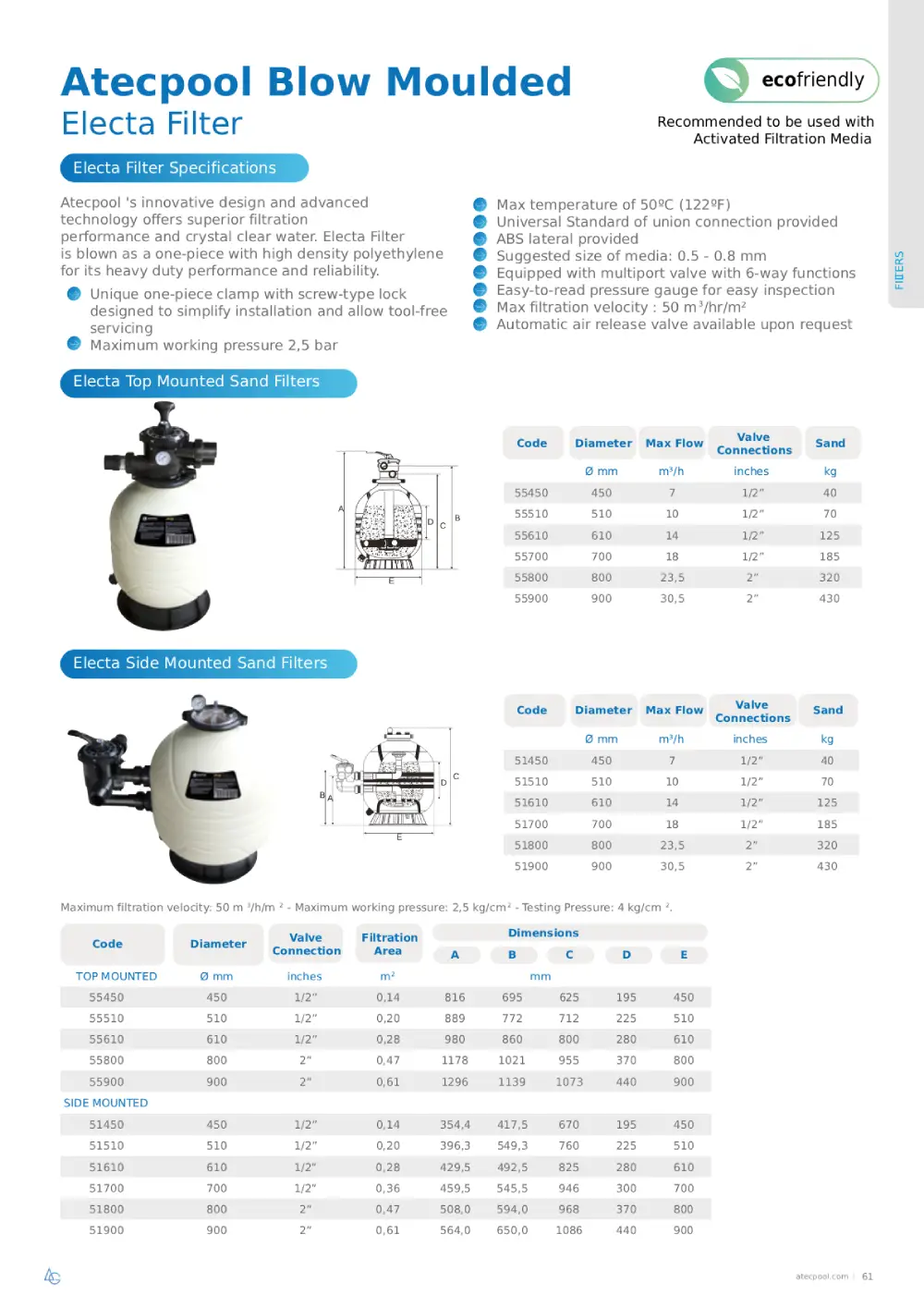

Atecpool Blow Moulded Electa Filter

Eco-friendly
Atecpool ‘s innovative design and advanced technology offer superior filtration performance and crystal clear water. Electa Filter is blown as a one-piece unit with high-density polyethylene for its heavy-duty performance and reliability.

Category:
Brand:
  • Unique one-piece clamp with screw-type lock designed to simplify installation and allow tool-free servicing.
  • Maximum working pressure 2,5 bar
  • Max temperature of 50ºC (122ºF)
  • Universal Standard of union connection provided
  • ABS lateral provided
  • Suggested size of media: 0.5 – 0.8 mm
  • Equipped with a multiport valve with 6-way functions
  • Easy-to-read pressure gauge for easy inspection
  • Max filtration velocity: 50 m3/hr/m²
  • Automatic air release valve available upon request

Technical Specification

Electa Top Mounted Sand Filters

Code Diameter Ø (mm) Maximum Flow (m³/h) Valve Connection Sand (kg)
55450 450 7 1½” 40
55510 510 10 1½” 70
55610 610 14 1½” 125
55700 700 18 1½” 185
55800 800 23.5 2″ 320
55900 900 30.5 2″ 430
Electa Side Mounted Sand Filters
Code Diameter Ø (mm) Maximum Flow (m³/h) Valve Connection Sand (kg)
51450 450 7 1½” 40
51510 510 10 1½” 70
51610 610 14 1½” 125
51700 700 18 1½” 185
51800 800 23.5 2″ 320
51900 900 30.5 2″ 430

Filtration Area and Dimensions

Code Diameter Ø (mm) Valve Connection Filtration Area (m²) A (mm) B (mm) C (mm) D (mm) E (mm)
Top Mounted Filters
55450 450 1½” 0.14 816 695 625 195 450
55510 510 1½” 0.20 889 772 712 225 510
55610 610 1½” 0.28 980 860 800 280 610
55800 800 2″ 0.47 1178 1021 955 370 800
55900 900 2″ 0.61 1296 1139 1073 440 900
Side Mounted Filters
51450 450 1½” 0.14 354.4 417.5 670 195 450
51510 510 1½” 0.20 396.3 549.3 760 225 510
51610 610 1½” 0.28 429.5 492.5 825 280 610
51700 700 1½” 0.36 459.5 545.5 946 300 700
51800 800 2″ 0.47 508 594 968 370 800
51900 900 2″ 0.61 564 650 1086 440 900
Maximum filtration velocity: 50 m³/h/m². Maximum working pressure: 2.5 bar. Testing pressure: 4 kg/cm². Maximum operating temperature: 50°C. An automatic air release valve is available upon request.
