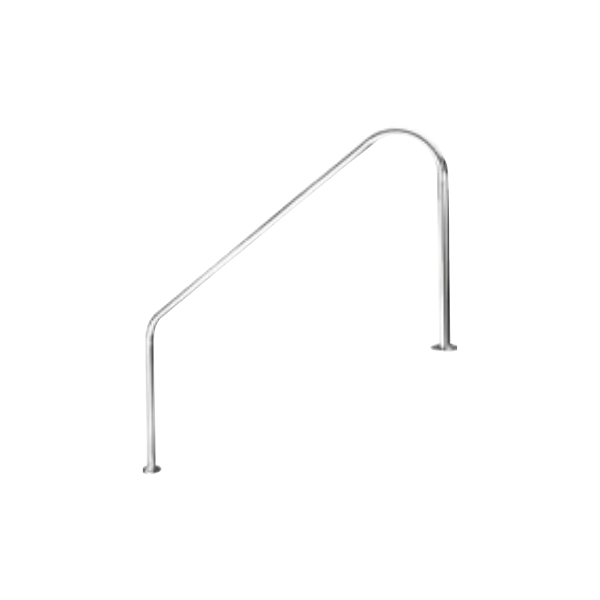

Exit Grab Rails Two Bends With Flange

Polished AISI 316 Ø42 mm pipe with two bends for installation in and out of water. Supplied with welded flanges for repair. SS316L available upon request.



Atecpool Exit Grab Rails Two Bends With Flange

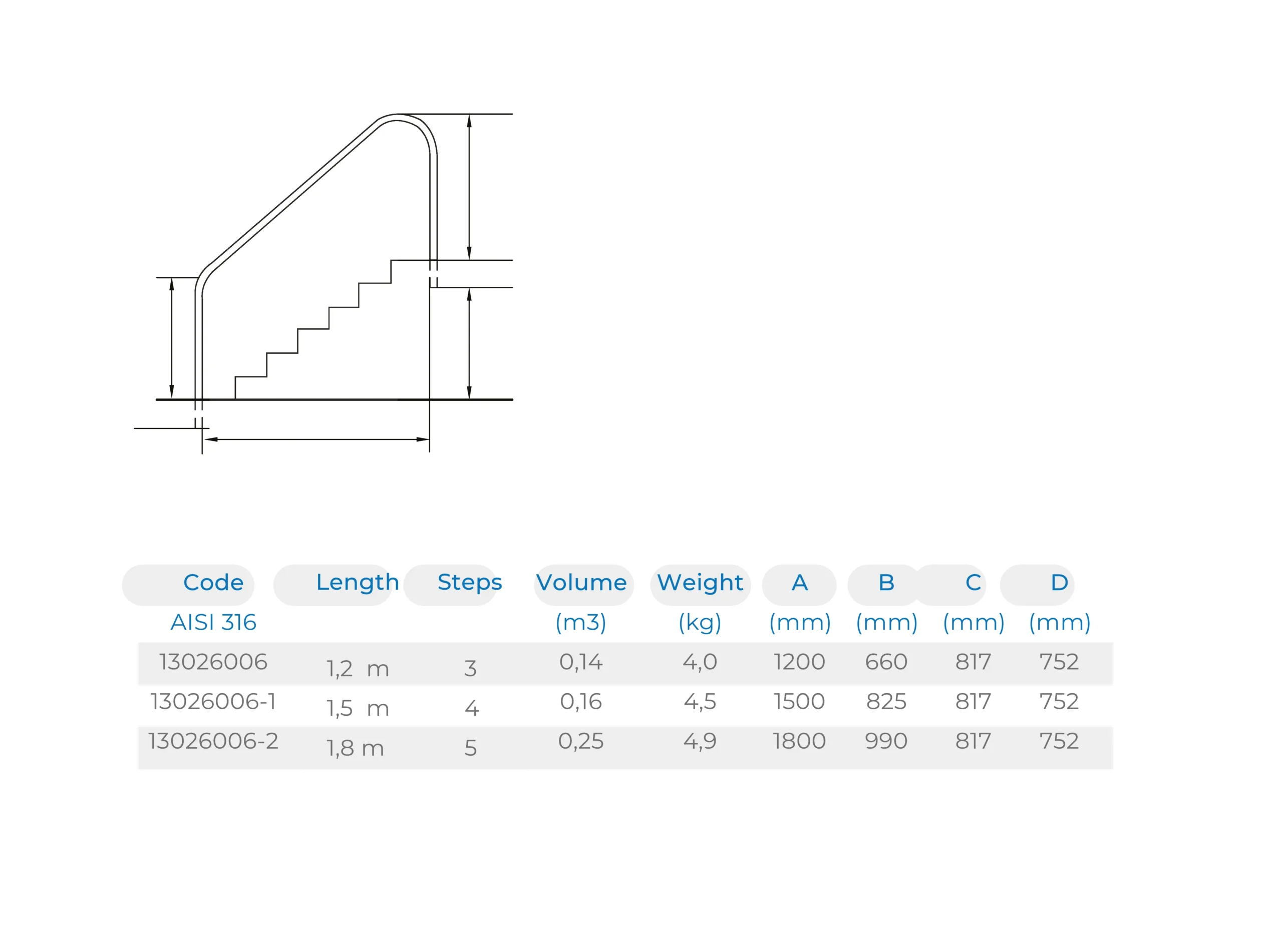

Code Length (m) Steps Material Volume (m³) Weight (kg) A (mm) B (mm) C (mm) D (mm)
13026006 1.2 3 AISI 316 0.14 4.0 1200 660 817 752
13026006-1 1.5 4 AISI 316 0.16 4.5 1500 825 817 752
13026006-2 1.8 5 AISI 316 0.25 4.9 1800 990 817 752
