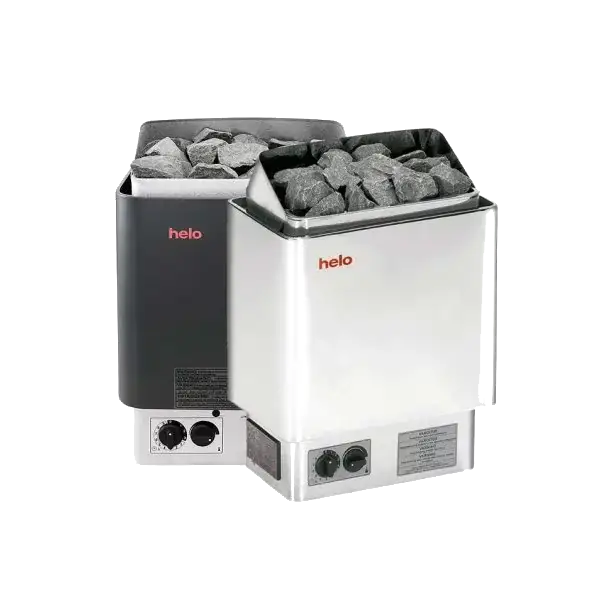

Helo Cup Sauna Heater

Reliable and safe Cup sauna heaters are an excellent choice for a traditional Finnish type sauna. These compact wall-mounted heaters are designed for domestic small and mid-size sauna rooms. They are easy to assemble and easy to use with a built-in timer and thermostat or with a separate control unit. With the timer, you can pre-select the time when you want the heater to be turned on, max. 9 hours beforehand. The running time is max 3 hours. CUP D requires a separate control unit, while the CUP STJ heater comes with a built-in thermostat and a timer of 9+3 hrs.

Category:
Brand:
Model Power Sauna Size Dimensions (W × H × D) Stones Mounting Side Front Ceiling Floor
CUP 45 D 4.5 kW 3–6 m³ 410 × 580 × 280 mm 15 kg Wall 50 mm 80 mm 1200 mm 120 mm
CUP 60 D 6 kW 5–9 m³ 410 × 580 × 280 mm 23 kg Wall 70 mm 100 mm 1250 mm 120 mm
CUP 80 D 8 kW 8–13 m³ 410 × 580 × 300 mm 23 kg Wall 100 mm 150 mm 1250 mm 120 mm

Download Catalogue

Download Manual

Download Warranty Letter
