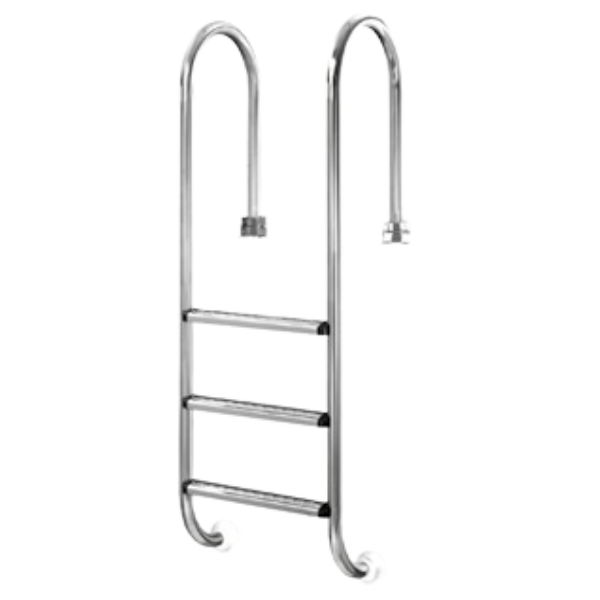

Muro Ladder

Atecpool Muro Ladders made of polished stainless steel (AISI 304 or AISI 316), designed for embedded pools. Steps in stainless steel with anti-slip. Handrails in polished stainless steel (Ø42mm tube). Complete with anchors and earthing accessories. SS316L available upon request.

Technical Specification

AISI 316 Models
Code Steps Material Weight Volume
13001200 2 AISI 316 10.0 kg 0.07 m³
13001300 3 AISI 316 11.8 kg 0.08 m³
13001400 4 AISI 316 13.2 kg 0.08 m³
13001500 5 AISI 316 14.0 kg 0.10 m³

AISI 304 Models

Code Steps Material Weight Volume
13001200-1 2 AISI 304 10.0 kg 0.07 m³
13001300-1 3 AISI 304 11.8 kg 0.08 m³
13001400-1 4 AISI 304 13.2 kg 0.08 m³
13001500-1 5 AISI 304 14.0 kg 0.10 m³
Dimensions
Steps A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)
2 120 620 250 1300 180 500 610
3 120 620 250 1550 180 500 610
4 120 620 250 1800 180 500 610
5 120 620 250 2050 180 500 610
