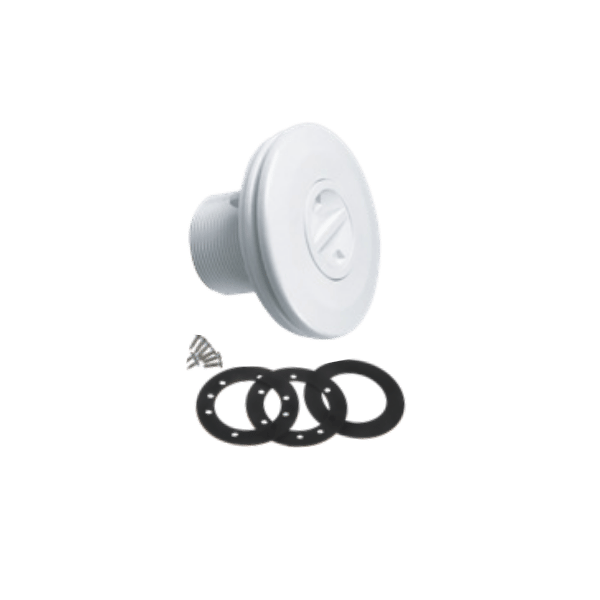

Suction Inlet ABS Threaded for Liner

Made in white ABS with 2” outer connection thread and Ø50 mm inner wall for liner pools. Supplied with gasket, screws and nut for liner fixing. Installed with female threaded wall conduits. Threaded plug of 1 1/2”. Maximum pressure: 6 Bar.

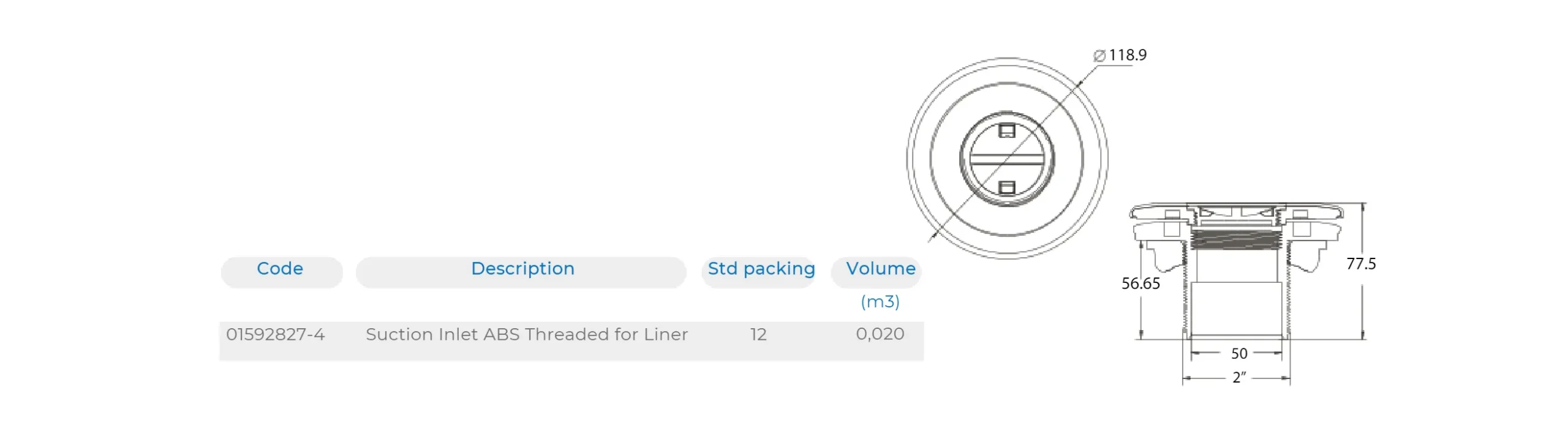

Code Description Std. Packing Volume (m³)
01592827-4 Suction Inlet ABS Threaded for Liner 12 0.020
