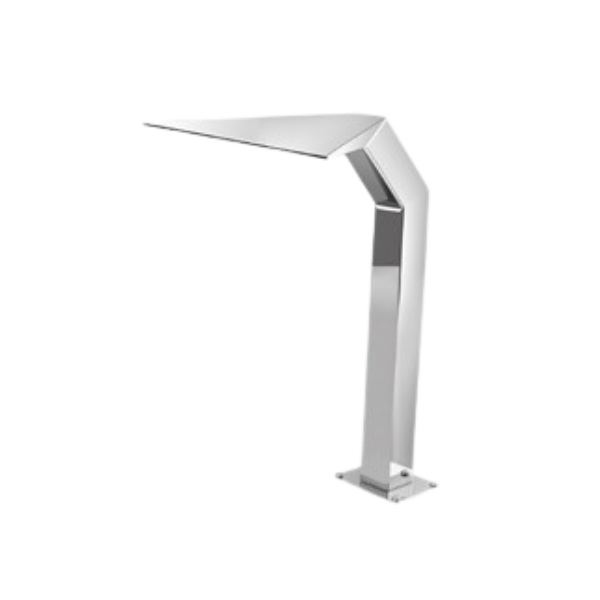

Water Curtain Straight

Ornamental Water Features – Water Curtain Straight

Special stainless steel ornamental pool features designed and engineered by ATECPOOL with excellence and high precision. Made of AISI 316 stainless steel for massage and relaxation, with the best aesthetic looks. Available in matte or mirror polished finish. Selection of pump based on the flow mentioned. Anchor included.

  • Water curtain w/ 400mm width – connection size 1.5”
  • Water curtain w/ 500/600mm width – connection size 2”

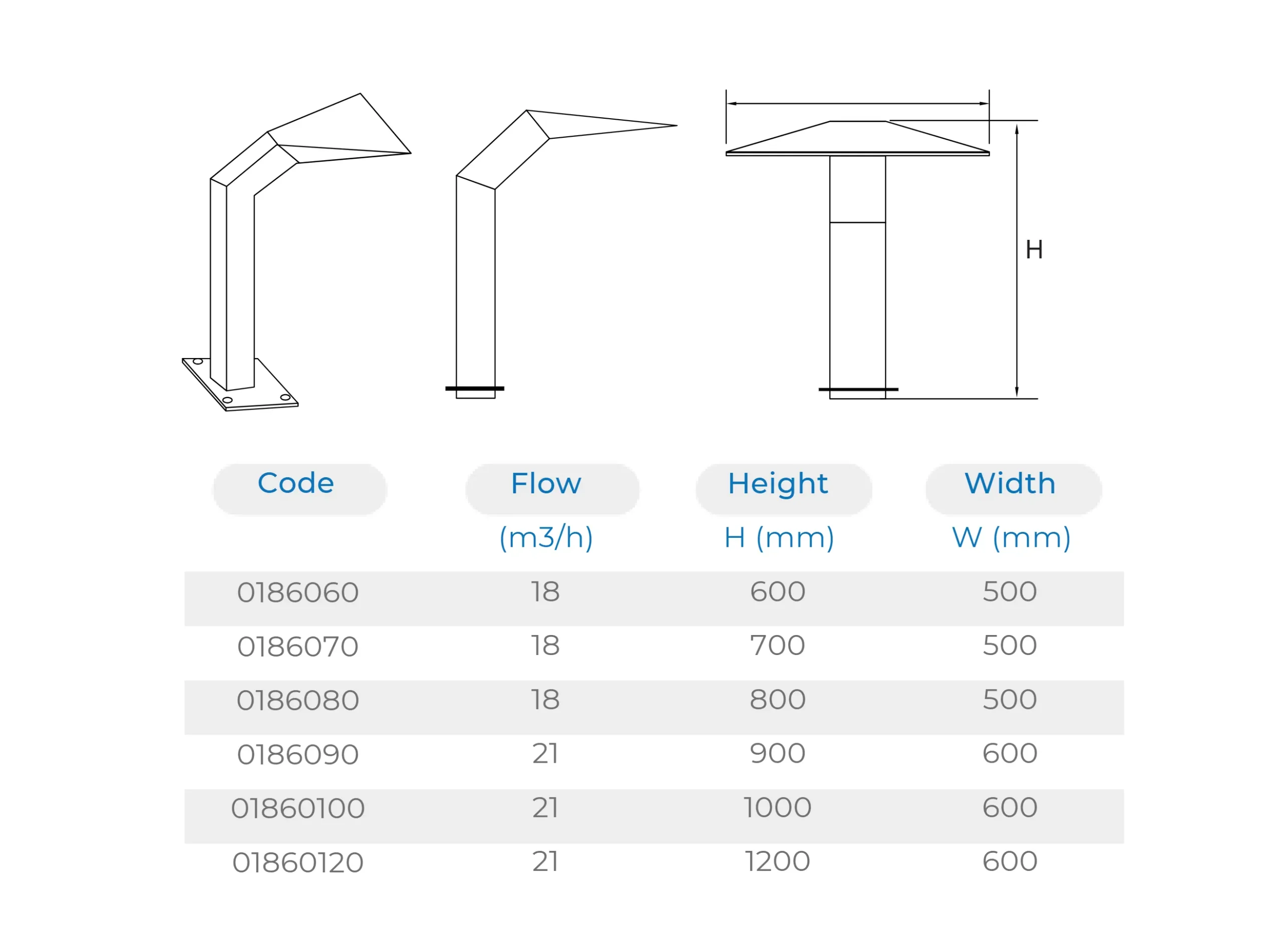

Technical Specifications
Code Flow (m³/h) Height H (mm) Width W (mm)
0186060 18 600 500
0186070 18 700 500
0186080 18 800 500
0186090 21 900 600
01860100 21 1000 600
01860120 21 1200 600
